Trivex® SL & SLi
TRIVEX SL & SLI CASE & TRAY PACKER
Max Simplicity for Retail-Ready Packaging

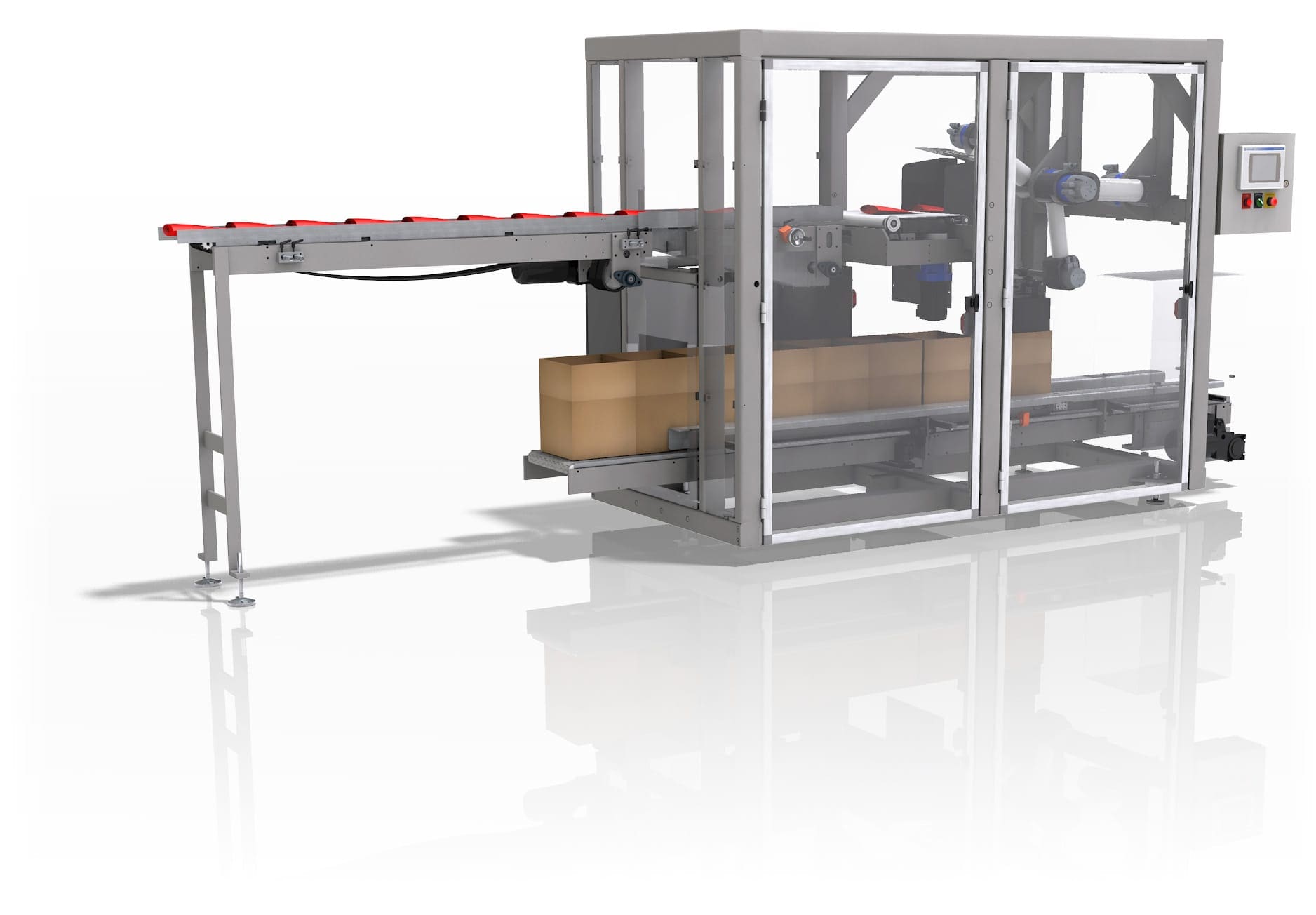

The TriVex SL and SLi are versatile case and tray packers
designed for retail-ready packaging. Run pouches and bags in both vertical and flat pack orientations on a single machine with options for case erecting and/or sealing. Infeed controls work in combination with SCARA arm controls for high-speed collation and seamless case loading.
products per minute
packaging for cases & trays
cases per minute
Trivex SL & SLi Pack Patterns
Support a wide array of product pack patterns with options for flat pack as well as single-, dual-, or triple-facing vertical packs.
Trivex SL & SLi Key Features
Automated Changeovers
Changeable SCARA Arm Tooling
Tooling options, such as the fork tool and collation bucket, can be switched out for lines running both vertical and horizontal pack patterns
Improved Ergonomics & Accessibility
Walk-in frame design for easy and safe accessibility and maintenance
Reduced Footprint
Streamlined Workflow
Combined product collator and loader loads cases as a complement instead of individually, resulting in a smoother, more efficient workflow
Custom Infeed & Case Handling
Product positioning conveyers,
case rotation and case handling options allow for unrivaled versatility
SL Product Loader
SLi Erector & Sealer
Product Rate
Up to 150 products/minute
Case Rate
Up to 25 cases/minute
Min. Case Size
Standard Minimum: 4″ x 4″ x 4.5″*
Max Case Size
Standard Maximum: 15″ x 10″ x 12″*
Product Type
Doypack, pillow bag, flat bottom bags and pouches
Pack Pattern Options
Single, dual, or triple facing packs for retail-ready display
Case Type
RSC & HSC;
Separately erected tray, bliss, or other
top-load-capable container
Payload
Approx. 7 lb
(End effector and product not to exceed 15.5lb)
* Note: Measurements indicate Direction of Travel x Vertical x Across Machine
Buy with confidence. Experience the difference.
Douglas stands behind our equipment with a 3-year limited component and limited lifetime frame warranty.
